Icyiciro Umwanya

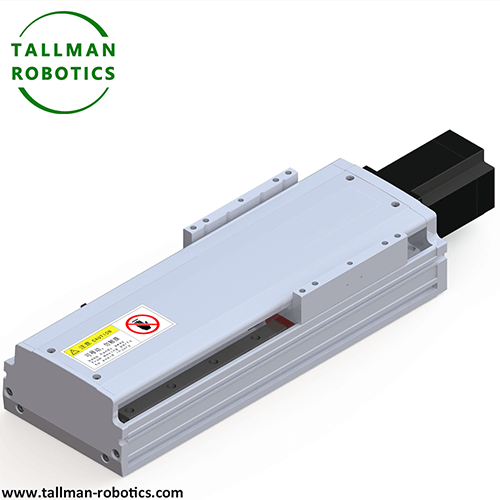

Icyerekezo cyumwanya Icyiciro nigikoresho cyigenzura gikoreshwa mugushikira hejuru - umurongo ugororotse kumurongo umwe (mubisanzwe X, Y, cyangwa Z axis). Irakoreshwa cyane mubice nkibikoresho byikora, gukora semiconductor, gukora optique, kugenzura ibinyabuzima, nibindi, kwemeza ko ibintu bishobora kwimurwa neza kumwanya wabigenewe. Icyerekezo cyumurongo Icyiciro ni - ibikoresho byikora byikora neza bigera ku kugenzura neza kwimura imitwaro mu cyerekezo cyumurongo binyuze mu guhuza imiterere ya mashini na sisitemu yo gutwara (guhuza neza neza bishobora kugera kuri ± 0.1 μ m kugeza kuri ± 10 μ m), kandi bikoreshwa cyane mubihe byerekana inganda zisaba guhinduka neza.

ImiterereByaIcyiciro Umwanya

1. Shingiro: Itanga inkunga ihamye, mubisanzwe ikozwe muri aluminiyumu cyangwa ibyuma bitagira umwanda.

2.

3.

4.

5. Gutwara imizigo (Imbonerahamwe yimuka): ikoreshwa mugukosora ibihangano cyangwa ibikoresho kandi ukagira uruhare mukwimurwa.

Ingero zo gusabaByaIcyiciro Umwanya

Gukora Semiconductor: gukoreshwa mugukata wafer no gushyira imashini ya lithographie.

Gutunganya lazeri: Igenzura umutwe wa laser kugirango ukate cyangwa ube ukoresheje urwego rwa micrometero neza.

Gukoresha microscope: Kwimura neza icyitegererezo kugirango ugere hejuru - gukemura.

Icapiro rya 3D: Igenzura urujya n'uruza rwo gucapa nozzle cyangwa laser.

Urahawe ikaze kureba imishinga myinshi cyangwa gusura amashusho yacu ya Youtube: https://www.youtube.com/@tallmanrobotics

Hano, tumenyekanisha umurongo ugaragara, TMS100-CM hamwe namakuru akurikira:

PkwitonderaByaIcyiciro Umwanya

1. Guhuza imizigo: Irinde kurenza urugero, bitabaye ibyo birashobora kwangiza gari ya moshi cyangwa moteri.

2.

3. Gufata neza: Gusiga amavuta buri gihe inzira ya gari ya moshi no kugenzura uko ibice byogukwirakwiza.

4.

Ibipimo ngenderwaho byingenzi byerekana imyanya ihagaze neza, gusubiramo neza neza neza, umuvuduko ntarengwa, hamwe nubushobozi bwo gutwara ibintu, hamwe nibitandukaniro rikomeye mubisabwa mubihe bitandukanye: urugero, umurima wa semiconductor usaba ± 0.5 μ m neza, mugihe imirongo isanzwe ikora yikora ishobora guhura ± 10 μ m.
